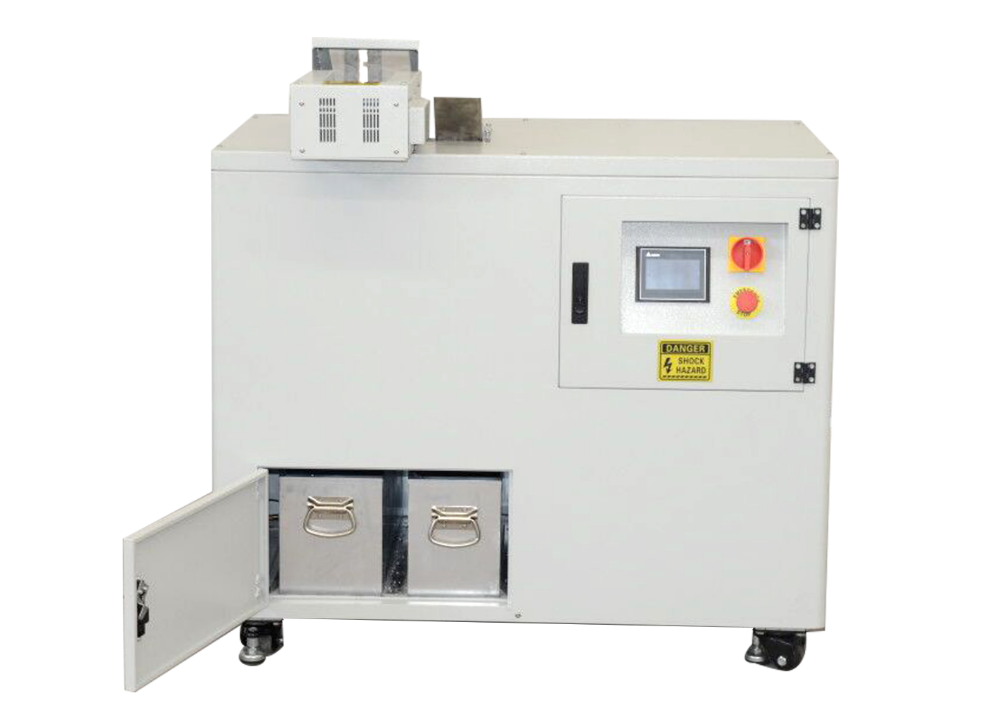

HD3000 Hard Drive Destruction Machine is Delivered

HD3000 is a new designed hard drive destruction machine,updated with planetary gear box and motor,

hard drive shredding is much more easily,two feeding ports for HDD and SSD can meet your own requirement

for shredding size.

we install oil lubrication system to extend the life of blade,and release the working noise during shredding,high strength  wheels let

the machine moveable and more flexible.

Machine Parameter

Shredding method Two Shaft shredding with minimum thickness blade

Shredding materials: Enterprise 3.5” HDD, 2.5” HDD, SSD, PC table

Shredding particle size: HDD: 9mm width，9 – 80 mm length SSD: 5mm width，5-40mm length

DIN66399 Level H4 Blade thickness & Qty HDD: 9mm * 12pcs，SSD：5mm * 18pcs，total 30 pcs

Shredding capacity: 200-300 pcs / hr

Feeding Size HDD conveyor：: 230mm（L）*115mm（W）*70mm（H） With SSD insert hopper

Power 3 KW, 110V or 230V single phase，13A / 380V 3 phase

Waste collection Bin Total 40L Machine size: 1144 (L） x 630 (W) x 1160 （H）mm

Machine weight 580Kg

Characteristic With Touch screen and PLC control, sensors， wooden  package ,Heavy duty wheels, one year warranty

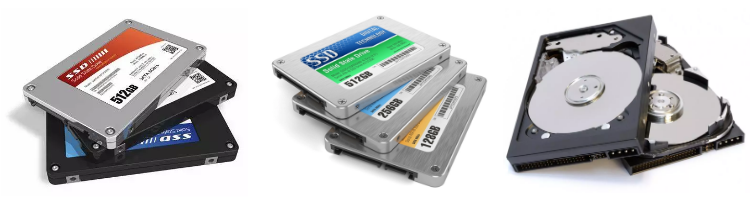

Application

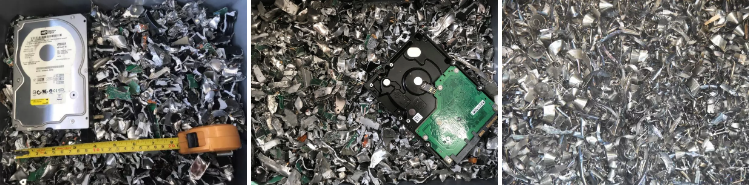

Shredding effect
