Professional Hard Drive SSD Mobile Phone PCB Shredder

Multiple purpose HDD multi shredding machine

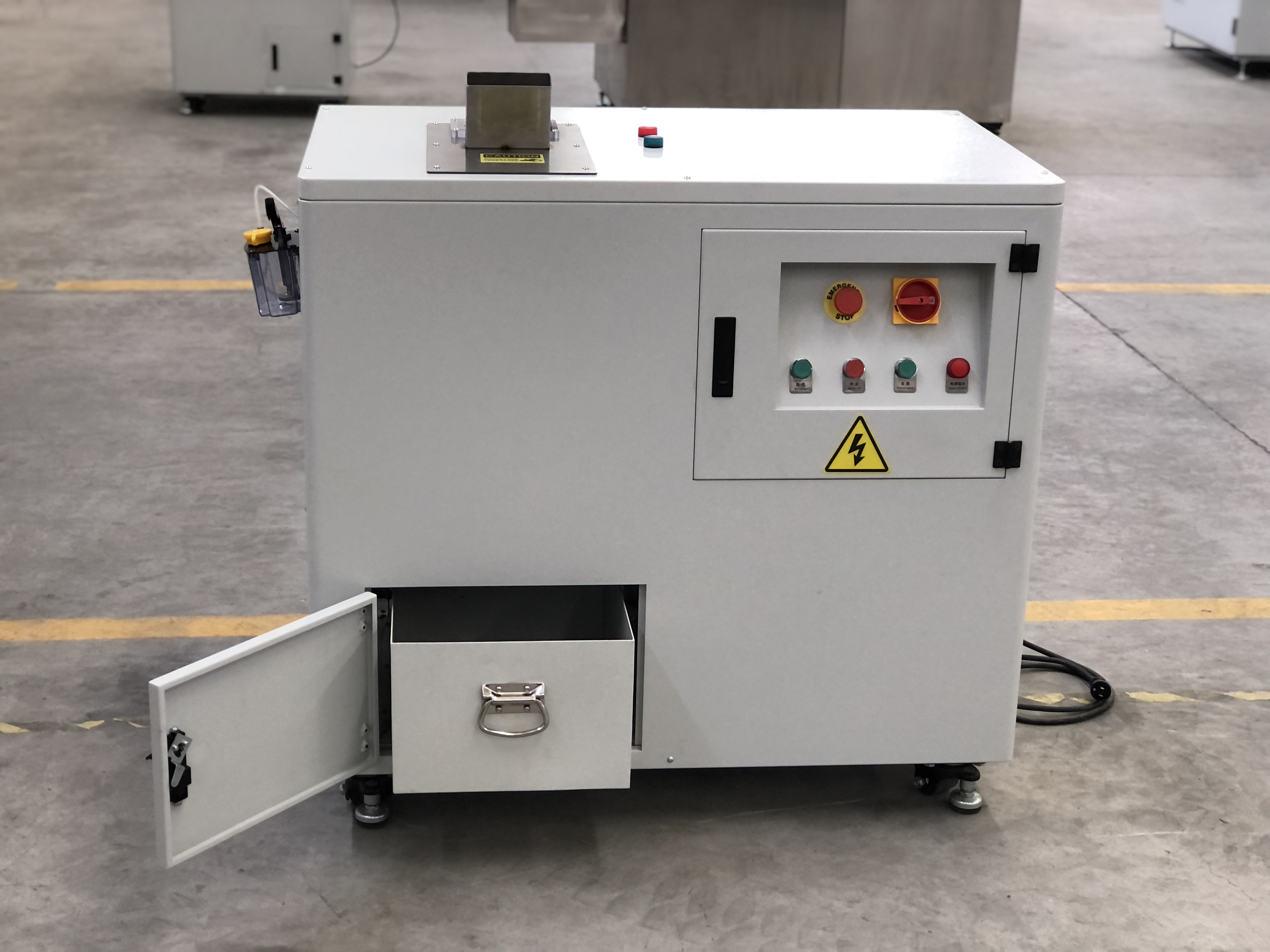

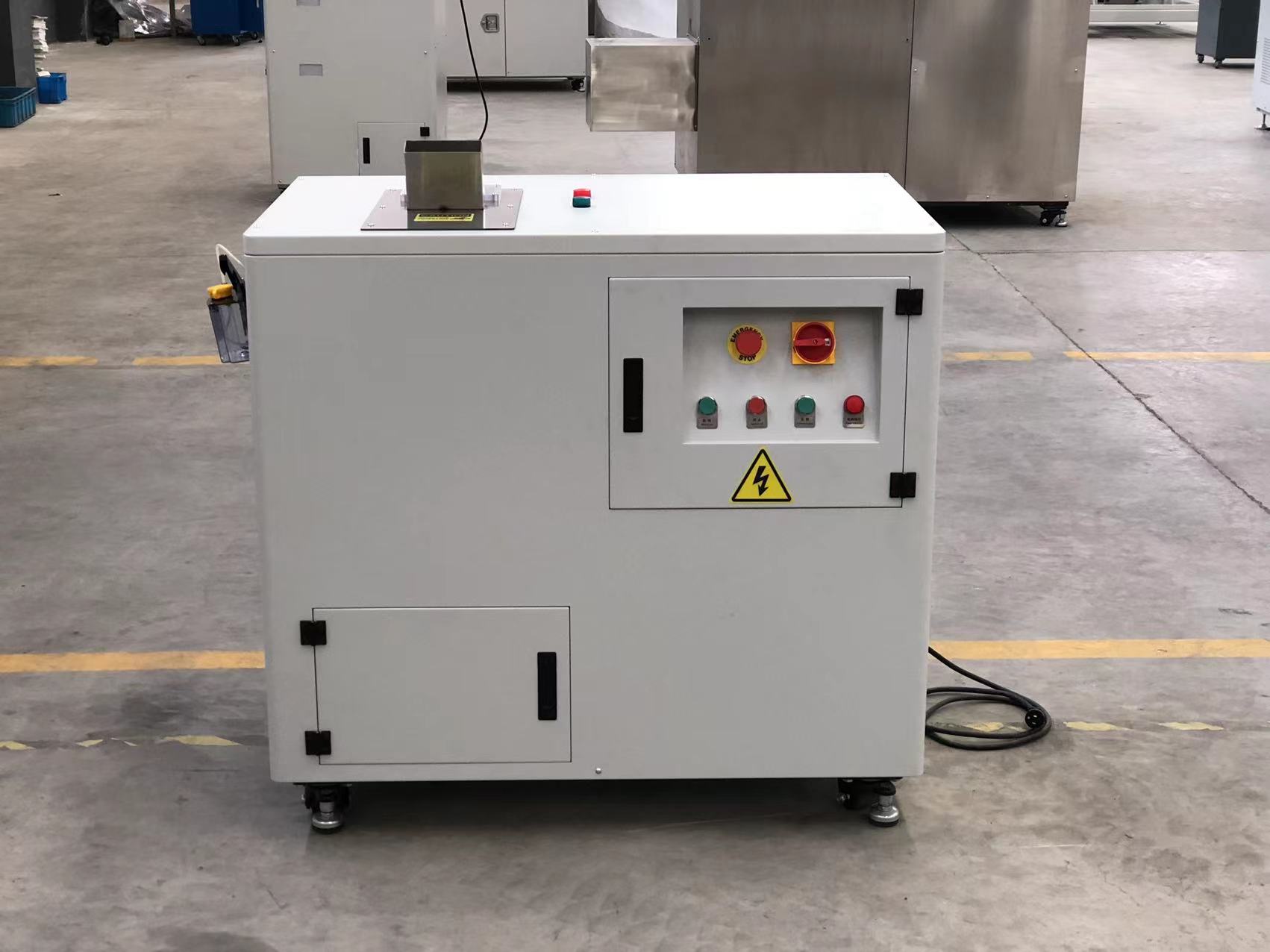

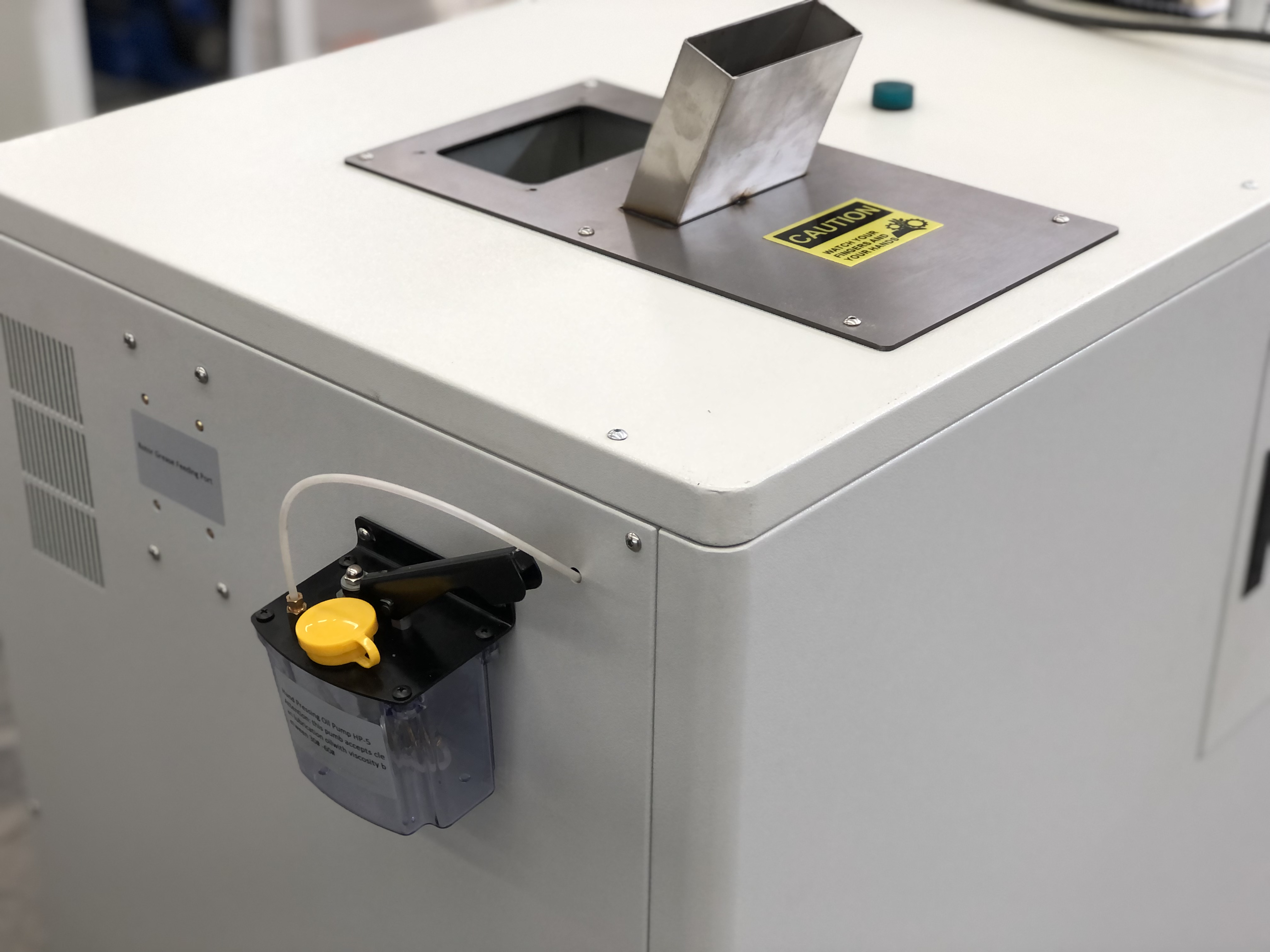

SUPU HD1800 Hard disk  shredder，suitable for Server HDD，3.5 inch & 2.5 inch HDD and LTO tape destruction，working capacity more than 200pcs HDD per hour，With heavy duty blade construction to satisfied with different material shredding standard，final particle for 18mm*random for HDD ，satisfied with DIN 66399 H4 standard，HD1800 contain heavy duty two shaft shredding system with durable blade，planetary gear  box drive system and smart control PLC system to process strong and powerful shredding power.

Shredding Videos

Technical Data：

Shredding method:Two Shaft shredding with 18mm thickness blade

Shredding materials: Enterprise 3.5” HDD, 2.5” HDD, SSD, PC table

Shredding particle size: HDD: 18mm width，18 – 80 mm length

DIN66399 Level H4 Blade thickness & Qty HDD: 7pcs

Shredding capacity: 200pcs / hr

Feeding Size HDD conveyor:230mm（L）*115mm（W）*70mm（H）

Power 3 KW, 110V or 230V single phase/ 380V 3 phase

Waste collection Bin :Total 40L

Machine size: 1044 (L） x 630 (W) x 1160 （H）mm

Machine weight: 460Kg

Characteristic :With  PLC control, sensors,wooden  package ,Heavy duty wheels, one year warranty

Application

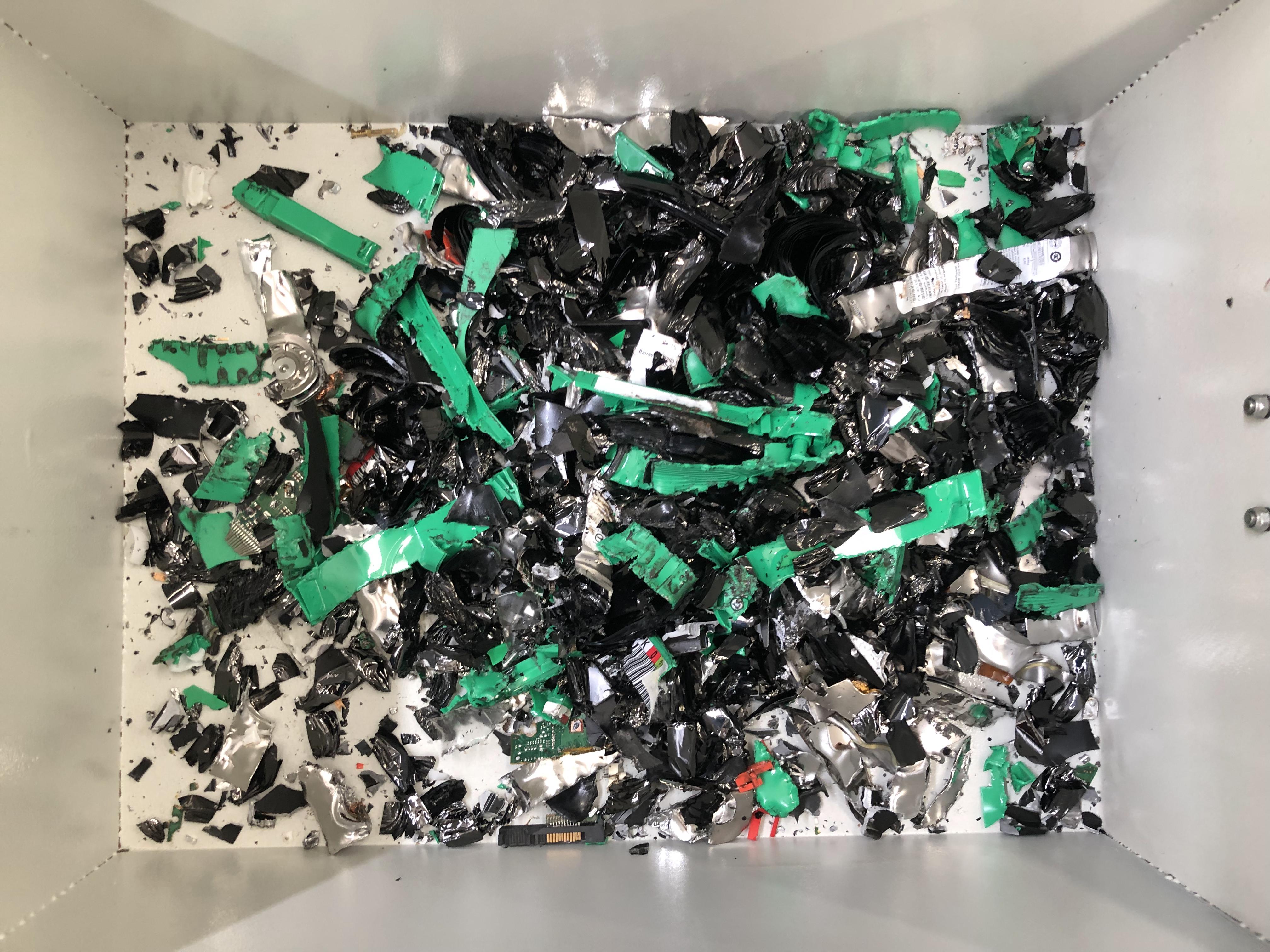

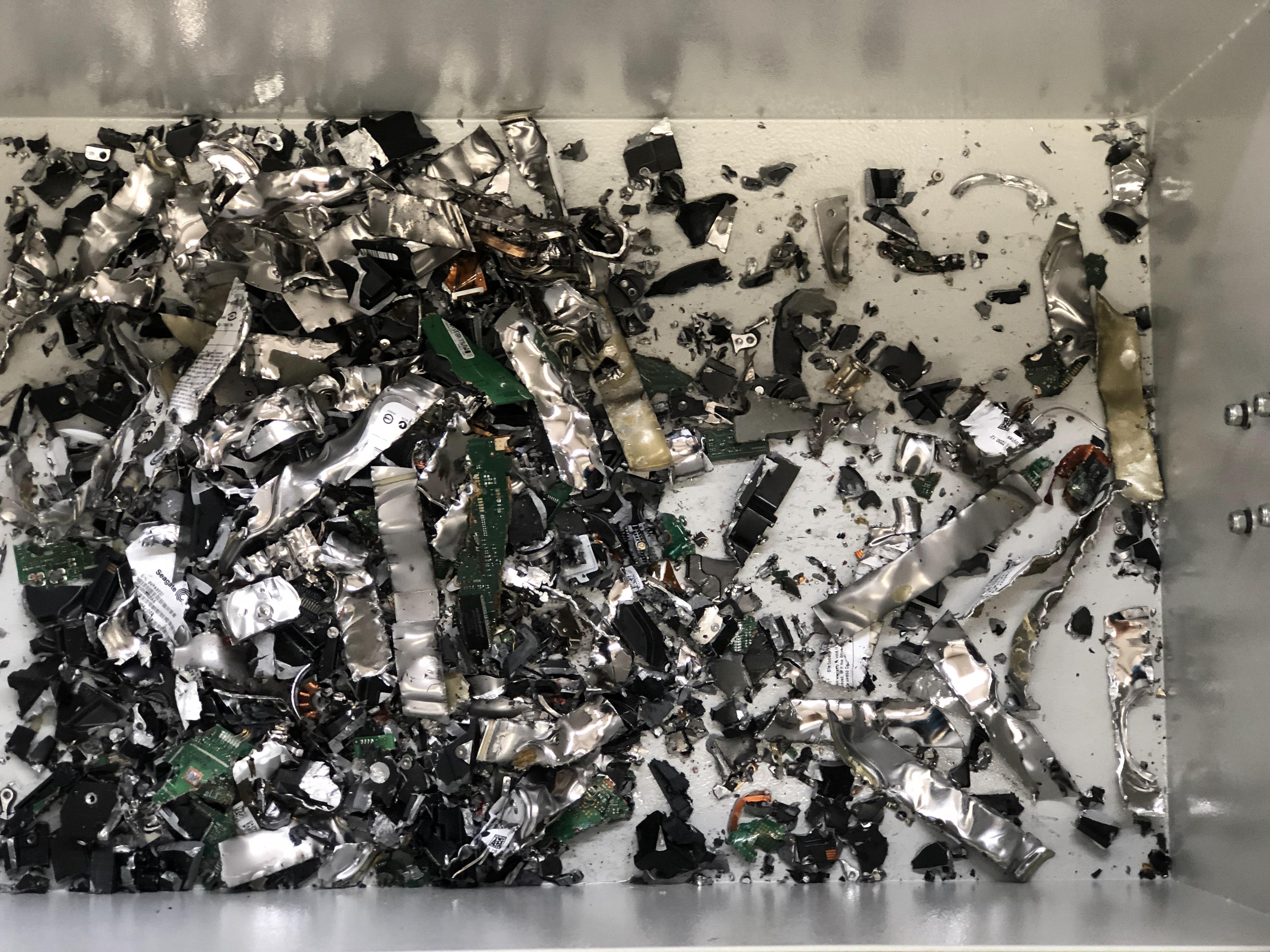

Shredding effect
