Toner Cartridge Recycling Line (500 - 800kg/hr)
The toner cartridge consists of plastic, iron, magnetic, aluminums, copper, soft material and toner, Recycling of waste toner cartridge is to shred and recycle these materials and collect the dust and toner powder on the process of shredded the toner cartridge, stabilize or remove harmful components by means of mechanical and physical methods, and reduce environmental pollution. |

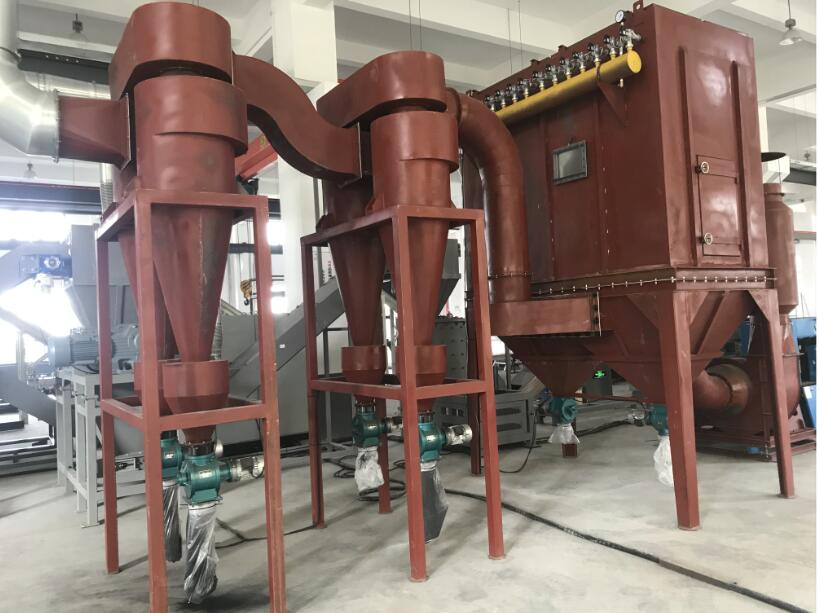

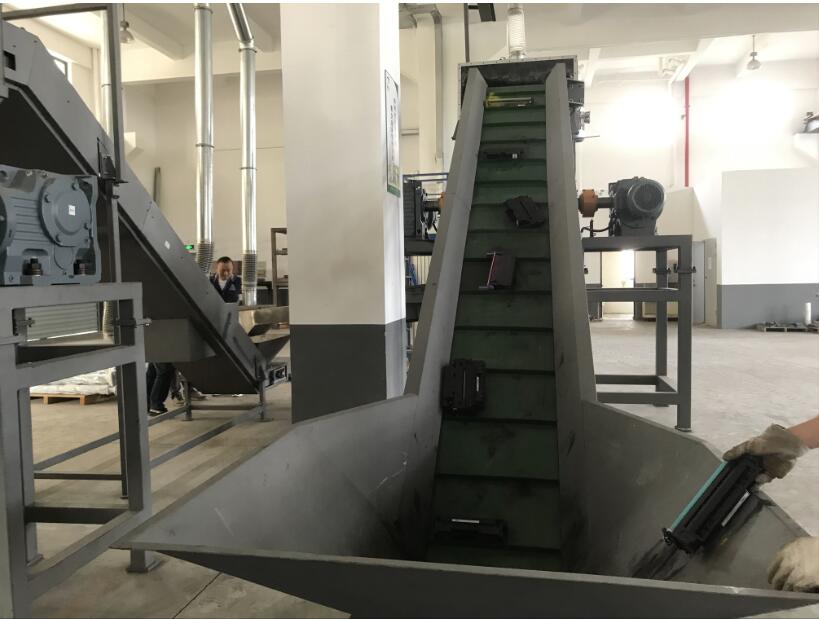

Variable frequency conveyor belt | Toner and duster collector |

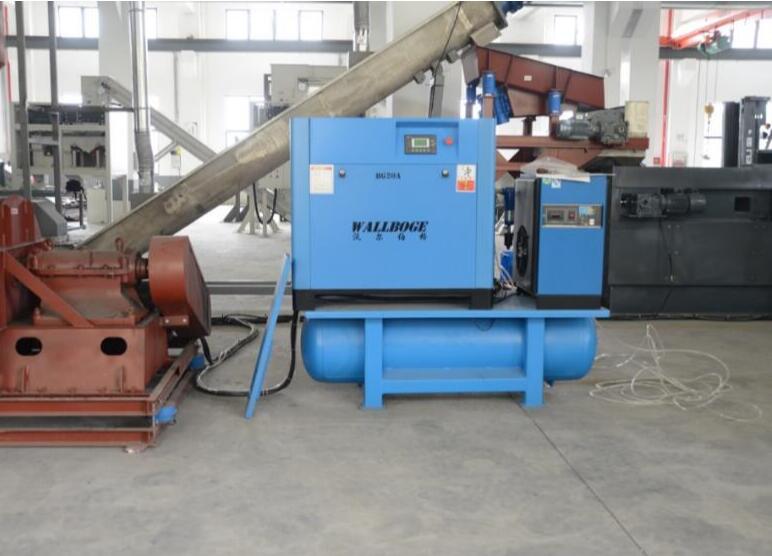

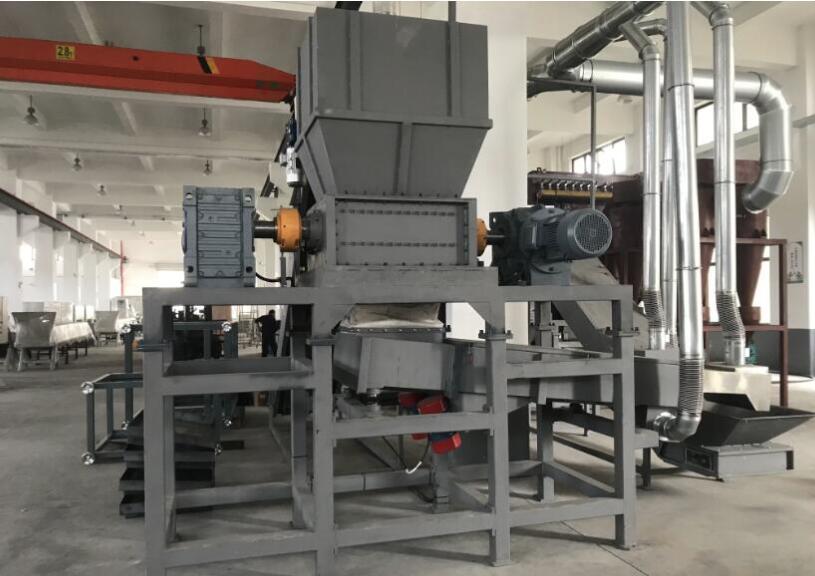

Two shafts shredder | Air Pump |
Shredding videos
<font color="#00cccc" face="Microsoft YaHei" size="3">

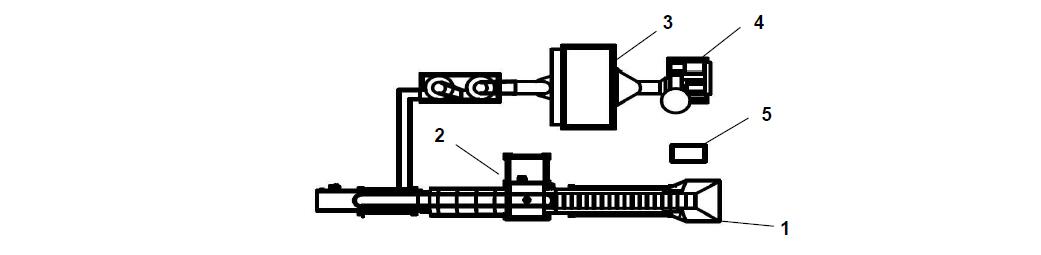

How to process
1. Variable frequency feed conveyor belt can be set different feeding speed
2. Two motors shredder shredding the toner cartridges to be small piece, after shredding mixed materials <30*150mm
3. Collect the toner powder and dust separated to different container/bag from the two shafts shredder
4. Make the dust fall off in the dust collector
5. With PLC control for automatic mode or manual mode for each part of machine
Before-----------------------------------------After

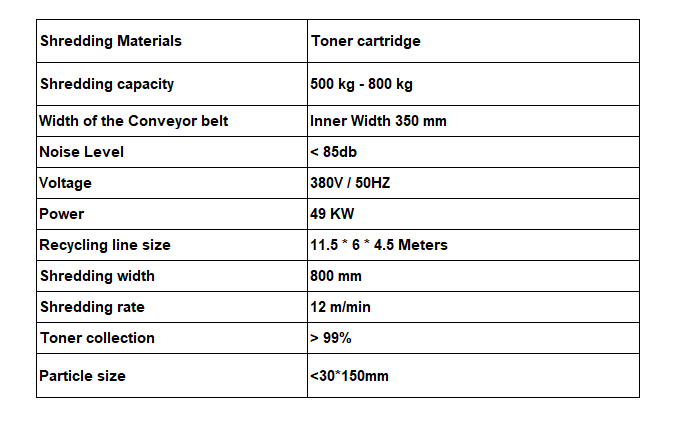

Technical Data
