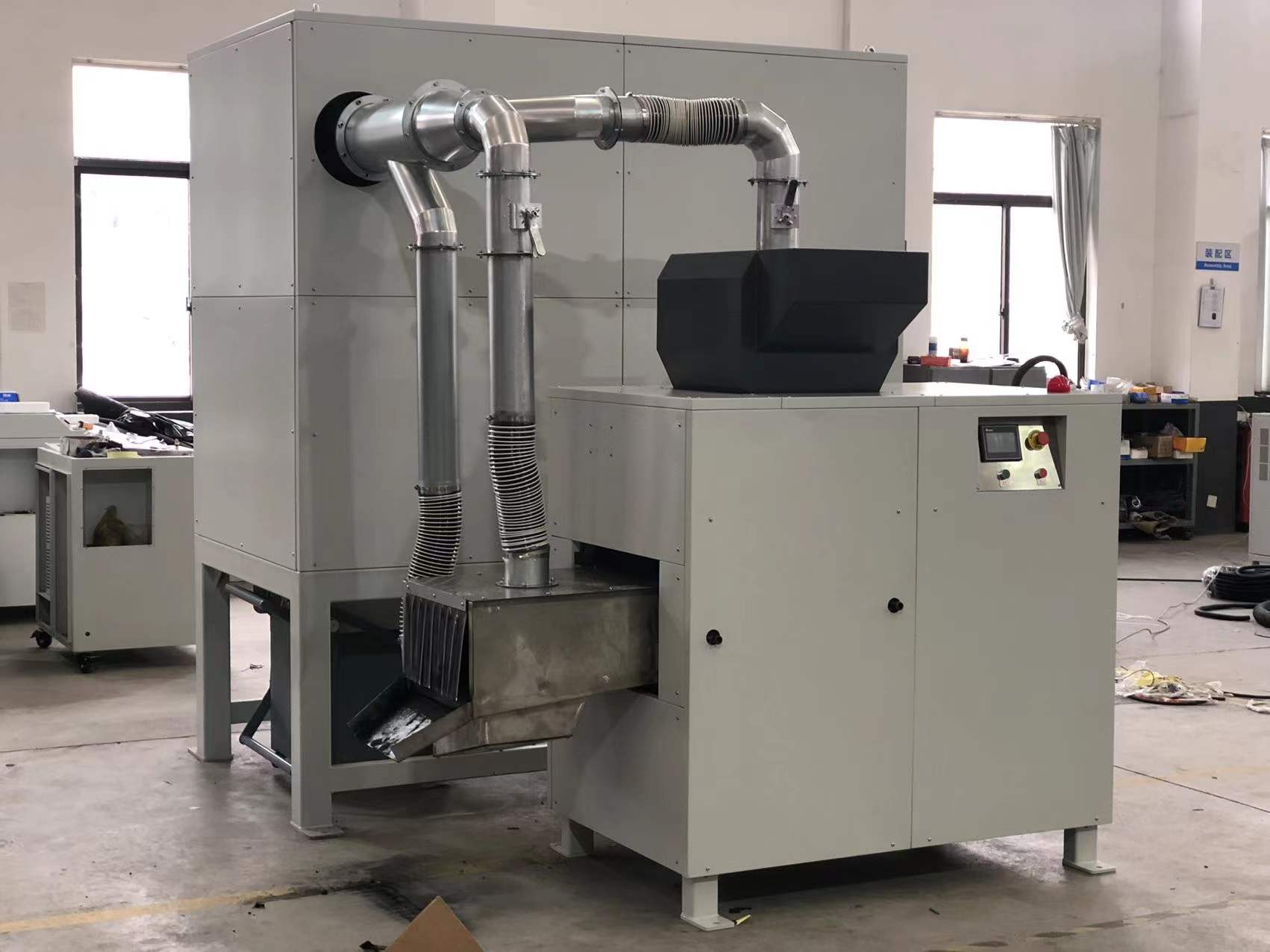

Industrial Toner Cartridge Recycling Line with separate toner powder
SUPU SPTC400 toner cartridge recycling machine，professional for waste laser toner cartridge recycling treatment based on non-explosive technology，with more than 100kg per hour working capacity and integrated construction，this machine contain high efficiency and safety design dust collection system，durable and anti-explosion shredder，smart control PLC system，to process the final discharge for mixed material and toner powder，easy control by one person and provide the safety operation.
The toner powder mixed with inert powder as a non-explosive output fraction is separated from all other mixed materials such as steel, aluminum and plastics, all of which can also be separately recovered and sold into their respective scrap markets. The inert powder can be used in production of bitumen (asphalt binder) or consigned to an inert waste landfill.
 |  |
 |  |
How to process

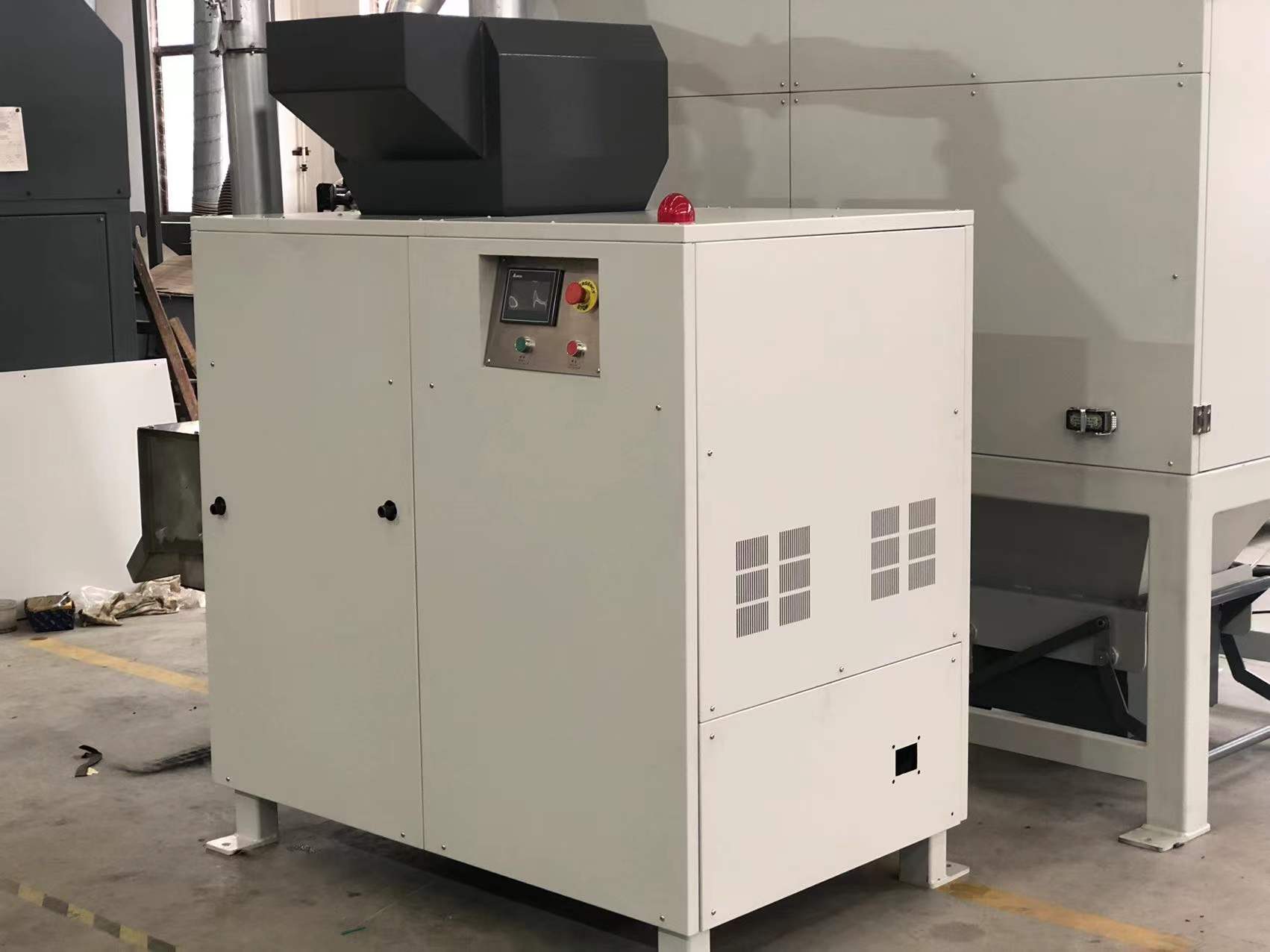

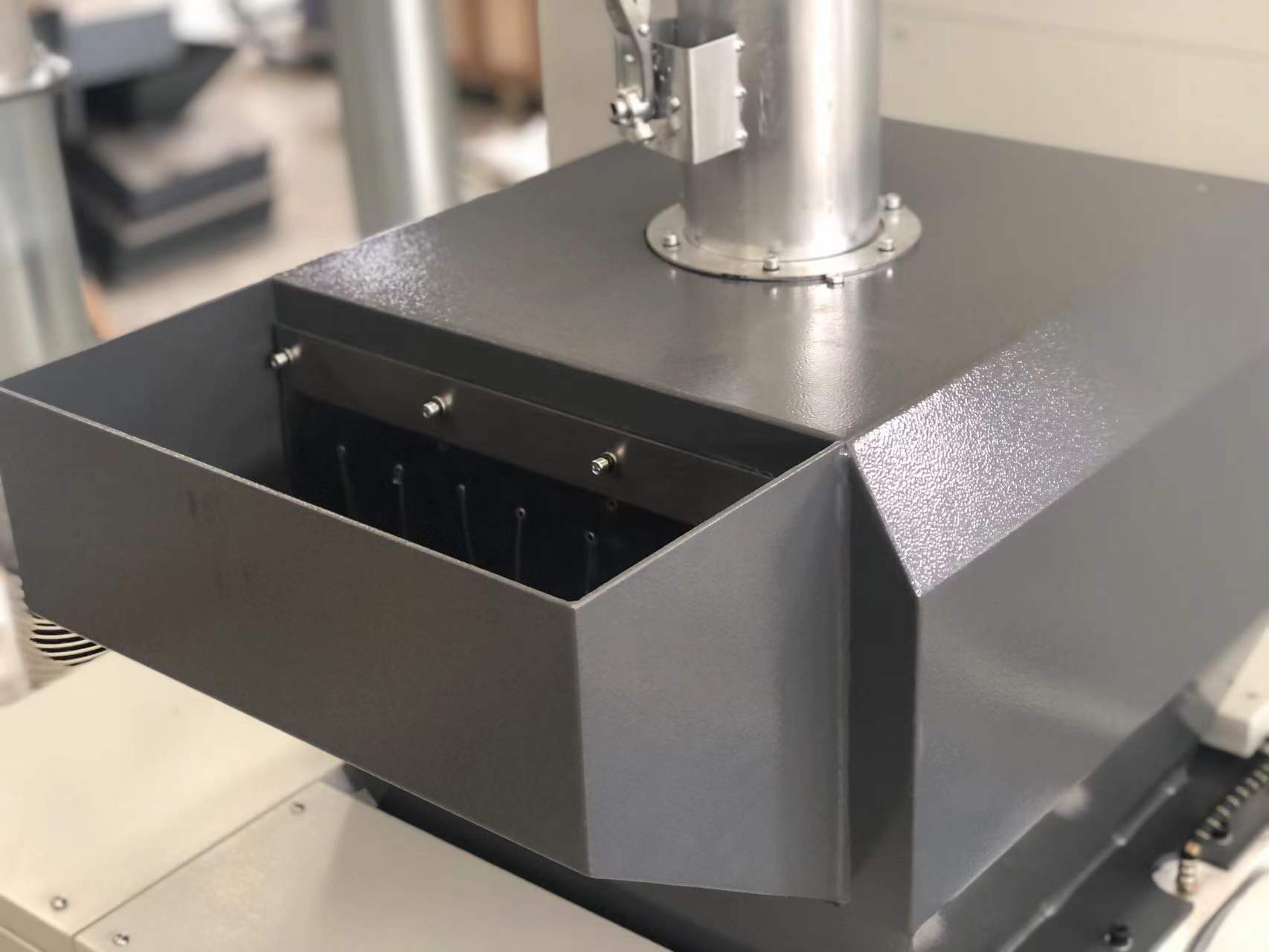

1. Feeding the toner Cartridges into the shredder，it will shred the toner cartridge and release the toner power;

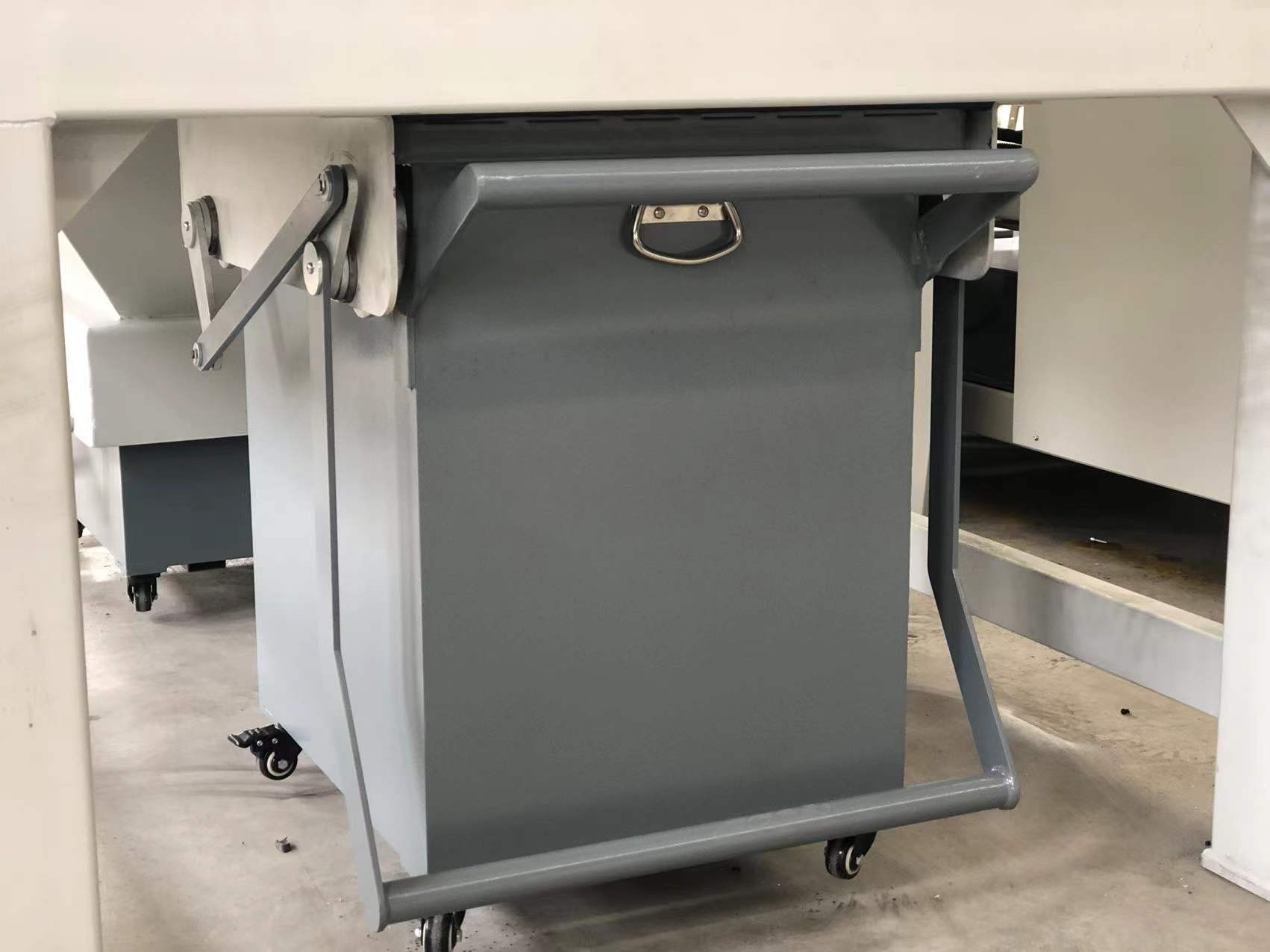

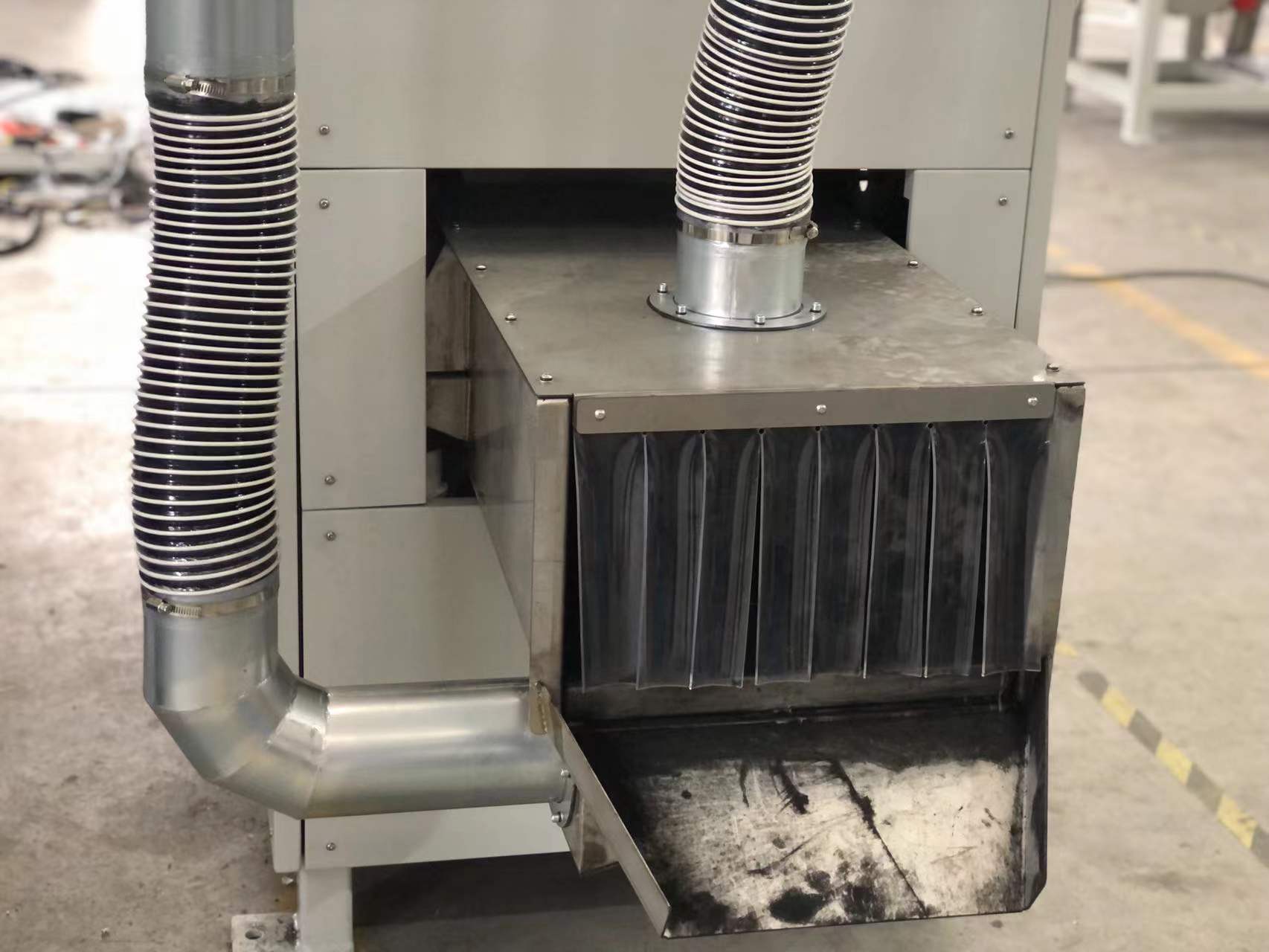

2. The vibrator discharge port is used to shake and screen out materials and toner. The toner duster collection can remove 85% of toner，the final output materials will be mixed plastic，iron and aluminum。

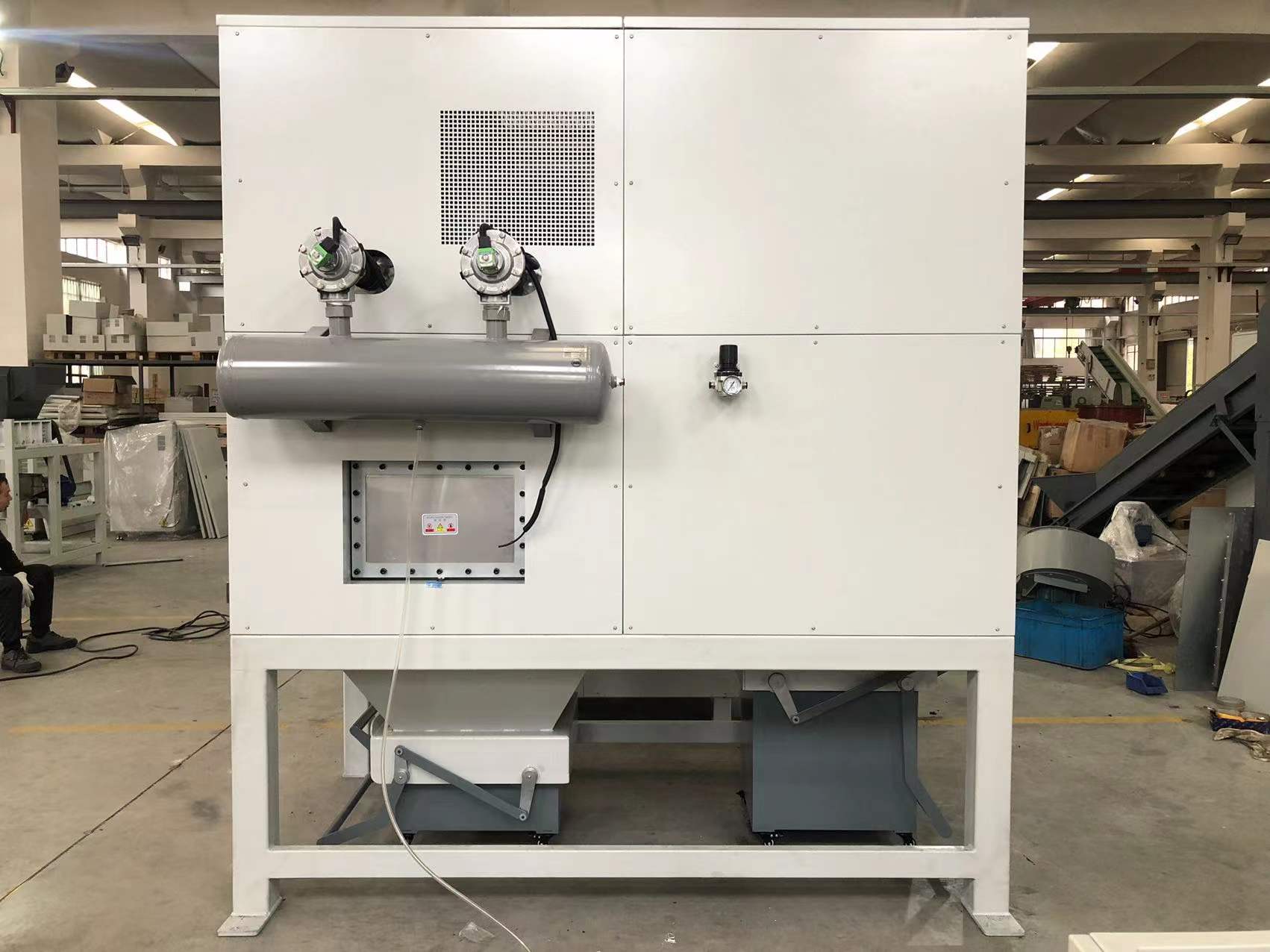

3. Air aspiration and dust collection system will connected the whole line to keep collect all the toner powder from the shredded particle.
Toner Cartridges Treatment

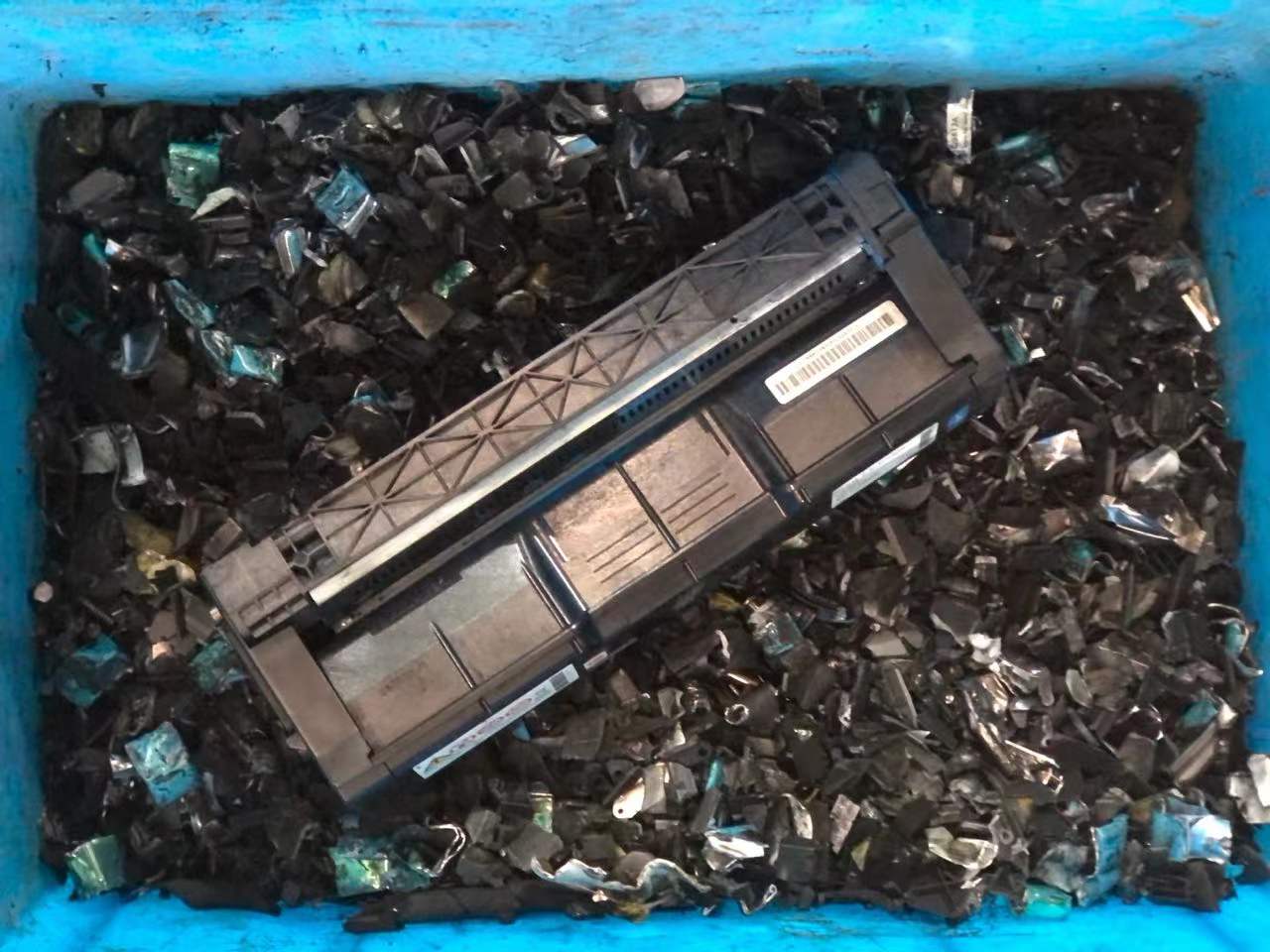

Mixed plastic，aluminum and iron
Toner powder
Technical Data
| Model | SPTC400 |
| Shredding materials | waste laser toner cartridge |
| Shredding width | 400mm |
| Shredding capacity | more than 100kg per hour |
| Feeding port width | 400mm |
| Power | 10.58 KW / 380V / 50HZ |
| Machine size | 2254(L) *2603 (W）*2480（H）mm |
| Final Output | Mixed plastic，aluminum，iron， and separated toner powder |
